Meet the ESP32-DIV v2

The ESP32-DIV v2 is a two-board handheld built around the ESP32-S3, a bright 2.8″ touchscreen, and a modular RF shield that stacks 3× NRF24L01, a CC1101 sub-GHz transceiver, an IR front-end, and optional RFID/NFC (PN532) and GPS modules. It is the "Swiss army knife" for wireless research — but designed from the ground up as an open, hackable alternative to closed multi-tools.

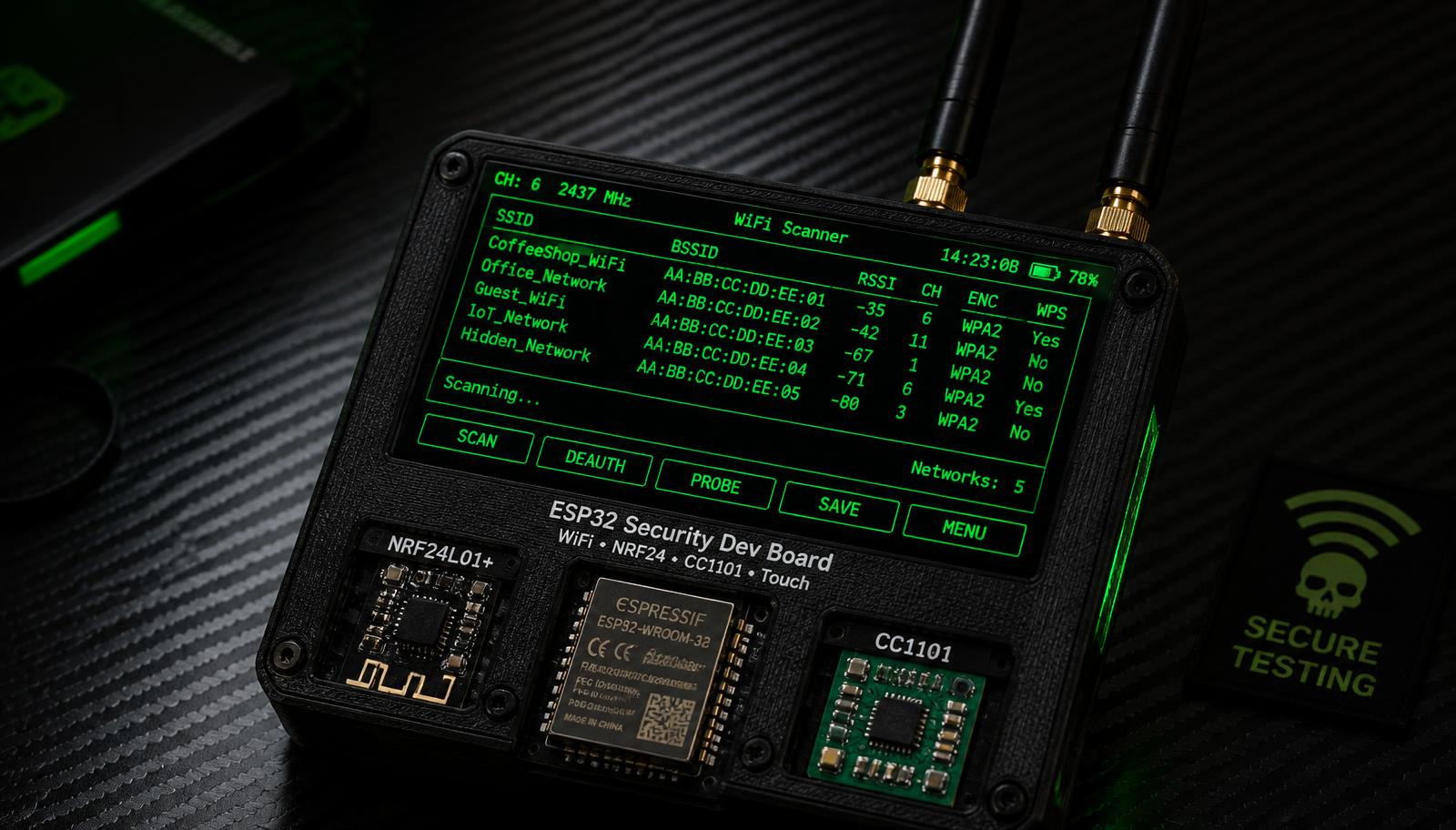

ESP32-DIV v2 running its WiFi Scanner — ESP32-DIV v2 · WiFi Scanner running on a 2.8″ ILI9341 touchscreen

What you can do with it

Wi-Fi Ops

Packet monitor with PCAP-to-SD, scanner, deauth + detector, beacon spam, captive portal, WPS, probe flood, Karma.

BLE Ops

Scanner, sniffer, spoofer, Sour Apple, AirTag spoof/sniff, BLE Rubber Ducky, skimmer detection.

2.4 GHz NRF24

128-channel spectrum, Protokill, ESB sniff / replay, MouseJack detect & inject.

Sub-GHz CC1101

Capture / replay, brute-force / De Bruijn, band jammer, passive jamming detector.

IR · RFID · GPS

IR capture-replay & universal remote, PN532 read/clone/dump, GPS wardriving & satellite scanner.

System

Serial monitor, SD file manager, OTA/SD firmware update, touch calibration, theme + LEDs.

// WHO IT'S FOR

Security researchers, RF hobbyists, CTF players, and firmware tinkerers who want a transparent, MIT-licensed platform they can extend in the Arduino/PlatformIO toolchain.

What's new in v2

ESP32-S3 replaces the classic ESP32 — fixes pin conflicts, better USB support, room to grow.
Two-board stack with pogo-pin headers — swap or repair the RF shield without touching the main board.
3× NRF24L01 and dedicated CC1101 for real multi-radio operations instead of time-slicing one chip.
Redesigned IR front-end after the v1 receiver limitation.
WS2812 NeoPixels ×4 for status feedback and buzzer for audible alerts.
Everything now stored/updated via microSD and OTA, including firmware and scripts.
