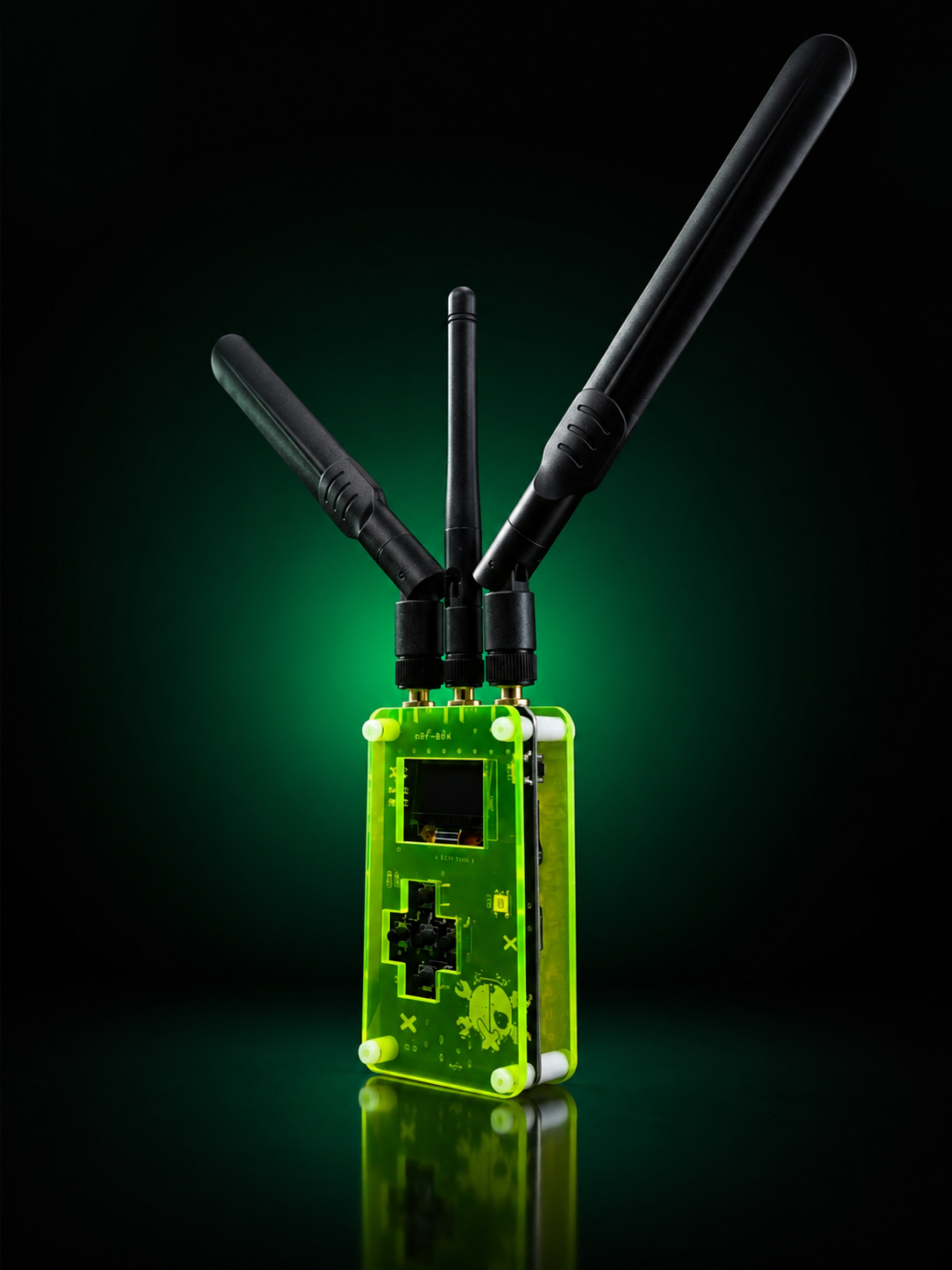

Finished NRF BOX V2.0 Open-Source All-in-One Gadget for BLE and 2.4GHz Networks,ESP32 core, a crisp OLED UI,triple nRF24L01 radi

Overview

NRF Box is a pocket-ready RF console for the curious: an ESP32 core, a crisp OLED UI, and triple nRF24L01 radios under your fingertips. What you can do - Navigate modules from the icon menu and view device status screens. - Scan nearby BLE devices and Wi-Fi networks with RSSI and channel details. - Visualize 2.4 GHz activity using the nRF24 analyzer view. - Run controlled RF test modes on the nRF24 radios for lab experiments. - Update firmware from SD and adjust device settings (brightness, NeoPixel). Highlights - OLED icon menu with 12 modules and quick navigation - BLE and Wi-Fi scanning views with detail pages - Triple nRF24L01 radios with independent control - SD-based firmware update support Hardware 1 × Finished Acrylic Enclosure 1 × ESP32 development board 3 × NRF24L01+ modules 2 × Upgraded High-Gain Antennas 1 × Original Antenna 5 × momentary buttons (Up, Down, Left, Right, Select) SD card module (firmware updates) This project is for educational purposes only. Use only in controlled environments, on equipment you own, and where local laws allow it. You are responsible for compliance and safe operation.

Features

• Triple nRF24L01 radios for wide 2.4 GHz coverage
• BLE + 2.4 GHz proprietary protocol scanning & jamming research
• ESP32 core with OLED UI and tactile buttons
• Open-source firmware — fully hackable
• USB-C powered, pocket-friendly enclosure

Specifications

Radios

3× nRF24L01

Chipset

ESP32

Display

OLED 128×64

Firmware

Open-source

Interface

USB-C
