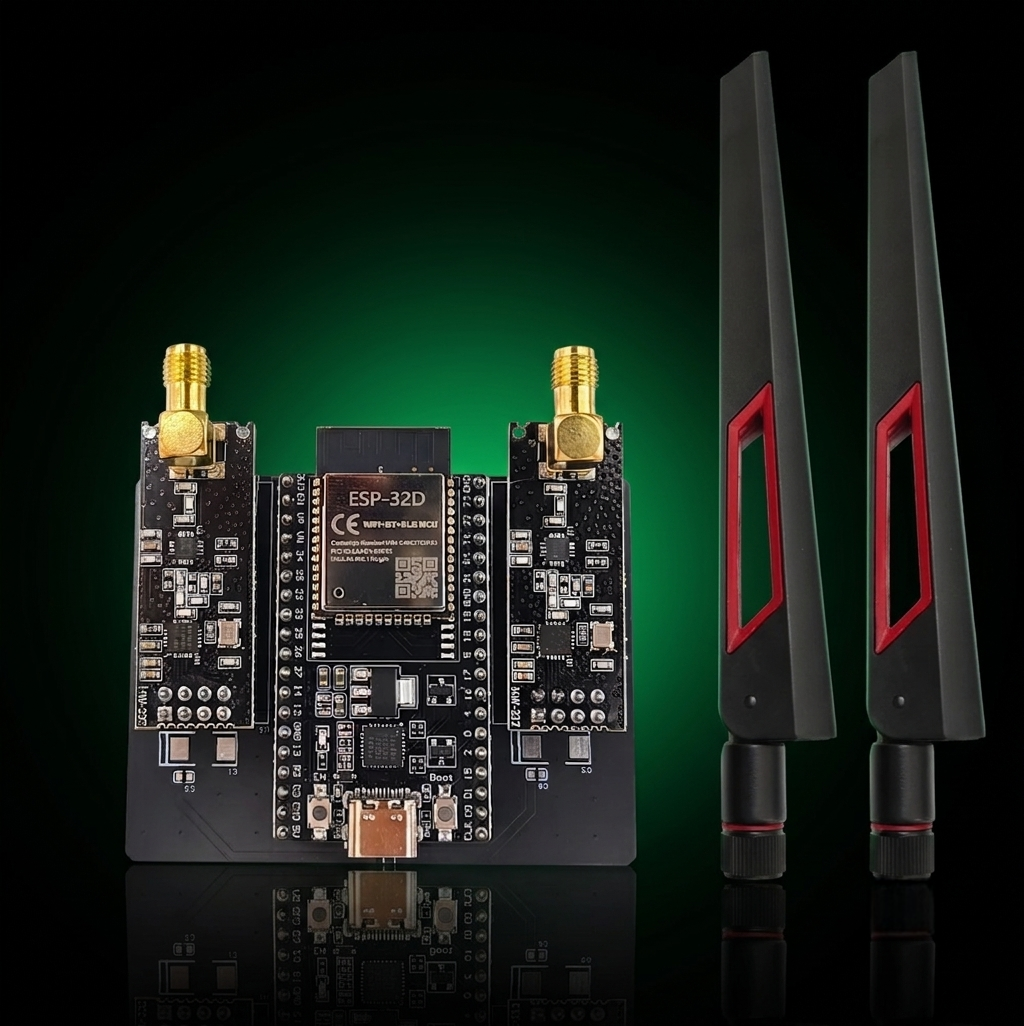

New ESP32 DevKitC + NRF24L01 PA LNA 2.4GHz Module Development Board Supports Wifi Bluetooth Blocker Signal And Upgraded Antenna

Overview

New ESP32 DevKitC + NRF24L01 PA/LNA 2.4 GHz Module Development Board — supports WiFi, Bluetooth blocker signal, and upgraded antennas. Instructions before use: 1. This hardware is solely intended for learning purposes. When paired with firmware, it can perform 2.4 GHz signal experiments. 2. This kit includes six items: one ESP32-DevKitC development board, two NRF24L01+PA+LNA modules, and one accompanying adapter board. 3. After connecting the Type-C to a 5V power supply, press the switch on the adapter board from OFF to ON; simultaneously press the RST reset button on the ESP32 development board — it is now ready for use. 4. Power supply: this product is powered via a wired connection using a Type-C cable. Package List: 1 × ESP32-DevKitC development board 2 × NRF24L01 PA/LNA modules 1 × Accompanying adapter board 2 × High-gain signal antennas (gain up to 12 dBi)

Features

• ESP32 DevKitC + dual NRF24L01 PA/LNA 2.4 GHz radios
• High-gain antennas (up to 12 dBi) for extended range
• Adapter board with power switch for easy bring-up
• USB-C powered, no external supply required
• Open-source firmware compatible

Specifications

MCU

ESP32 DevKitC

Extras

Adapter board with power switch

Antenna

2× 12 dBi external

Interface

USB-C

Radio Add-on

2× NRF24L01 PA/LNA 2.4 GHz
